제품소개동물과 인간의 조화로운 삶을 추구하는 동물분야 IT 전문 기업 IntoCNS입니다.

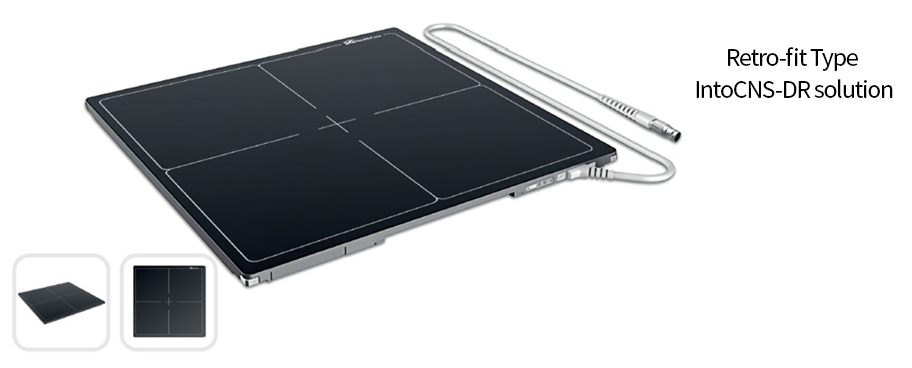

"Retro-fit Type IntoCNS-DR solution"
인투씨엔에스의 DR solution은 빠르고
정확한 최적의 영상 진단 솔루션입니다.
|
|
|
- 동물병원 EMR(전자차트)와의 완벽한 호환성
- 업무 효율 향상을 위한 UI/UX에 최적화된 우수한 동물 전용 콘솔SW 탑재
- 최적화된 이미지 프로세싱 탑재, 균일하고 선명한 이미지 획득
제품사양
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) | |
|---|---|---|
| Detector technology | Amorphous Silicon | |
| Scintillator | Csl | |
| Active area | 427 x 427 mm | |
| Pixel matrix | 3072 x 3072 | |
| Pixel pitch | 139μm | |
| Spatial resolution | 3.6Ip/mm | |
| AD conversion | 16 bit | |
| Trigger mode | AED / Software / Prep | AED / Software |
| Full image time | 5 sec | |
| Preview Image time | 3 sec | 4sec |
| Data interface | GlgE | 2.4G and 5G IEEE802.11 a/b/g/n/ac |
| Battery operation time | n/a | 5 h |
| Power consumption | 30 w | 16 w |
| Dimension | 460 x 460 x 15 mm | |
| Weight | 4kg | 4.6kg |
| Operating temperature | 5~35 ℃ | |
| Operating humidity(% RH) | 30~80 % RH(Non-condensing) | 10~90 % RH(Non-condensing) |
| Strorage temperature(℃) | -10~55℃ | -20~55℃ |
| Storage Humidity(% RH) | 10~90 % RH(Non-Condensing) | 5~95 % RH (Non-Condensing) |
| Application | Medical / VET | |
| * Upgrade and Options : Cable, Power unit, Battery charger | ||
| Detector technology | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| Amorphous Silicon | - |
| Scintillator | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| Csl | - |
| Active area | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| 427 x 427 mm | - |
| Pixel matrix | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| 3072 x 3072 | - |
| Pixel pitch | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| 139μm | - |
| Spatial resolution | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| 3.6Ip/mm | - |
| AD conversion | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| 16 bit | - |
| Trigger mode | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| AED / Software / Prep | AED / Software |
| Full image time | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| 5 sec | - |
| Preview Image time | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| 3 sec | 4sec |
| Data interface | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| GlgE | 2.4G and 5G IEEE802.11 a/b/g/n/ac |
| Battery operation time | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| n/a | 5h |
| Power consumption | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| 30w | 16w |
| Dimension | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| 460 x 460 x 15 mm | - |
| Weight | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| 4kg | 4.6kg |
| Operating temperature | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| 5~35 ℃ | - |
| Operating humidity(% RH) | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| 30~80 % RH(Non-condensing) | 10~90 % RH(Non-condensing) |
| Strorage temperature(℃) | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| -10~55℃ | -20~55℃ |
| Storage Humidity(% RH) | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| 10~90 % RH(Non-Condensing) | 5~95 % RH (Non-Condensing) |
| Application | |
|---|---|
| 1717 WIRED(Csl) | 1717 WIRELESS(Csl) |
| Medical / VET | - |
| * Upgrade and Options : Cable, Power unit, Battery charger | |
